Defines basic telemetry formats. More...

#include <sys/types.h>
#include <fcntl.h>

Include dependency graph for tm.h:

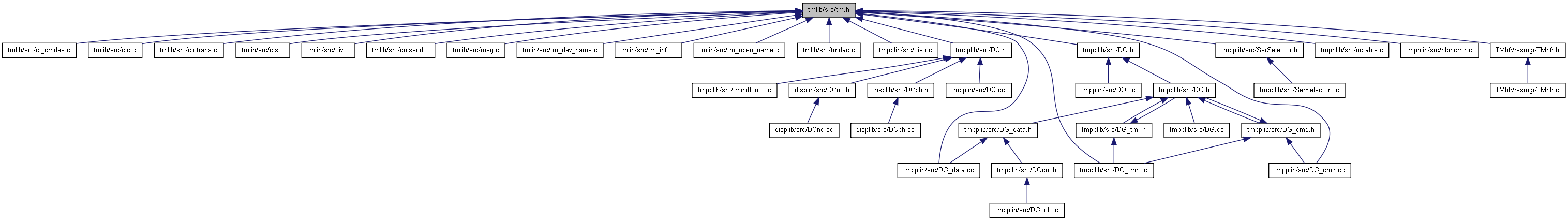

This graph shows which files directly or indirectly include this file:

Classes
struct	tm_hdr_t
struct	tstamp_t
struct	tmid_t
struct	tm_dac_t
struct	tm_info_t
struct	tm_data_t1_t
struct	tm_data_t2_t
struct	tm_data_t3_t
struct	tm_data_t4_t
struct	tm_msg
union	tm_hdrs
union	tm_packet_t
Defines
#define	__attribute__(x)
#define	TMHDR_WORD 0x4D54
#define	TMBUFSIZE 16384
#define	TMTYPE_INIT 0x0100
#define	TMTYPE_TSTAMP 0x0200
#define	TMTYPE_DATA_T1 0x0301
#define	TMTYPE_DATA_T2 0x0302
#define	TMTYPE_DATA_T3 0x0303
#define	TMTYPE_DATA_T4 0x0304
#define	TM_HDR_SIZE_T1 6
#define	TM_HDR_SIZE_T2 10
#define	TM_HDR_SIZE_T3 8
#define	TMF_INVERTED 1
#define	tmi(x) tm_info.tm.x
#define	tm_mfctr(mf) (mf[tmi(mfc_lsb)] + (mf[tmi(mfc_msb)]<<8))
#define	CMD_MAX_COMMAND_IN 300
Typedefs
typedef unsigned short	mfc_t
typedef unsigned short	tm_hdrw_t
typedef unsigned long	tmcks_t
typedef struct tm_msg	tm_msg_t
typedef union tm_hdrs	tm_hdrs_t
Functions
const char *	tm_dev_name (const char *base)
	Build a standard name for QNX6 resource.

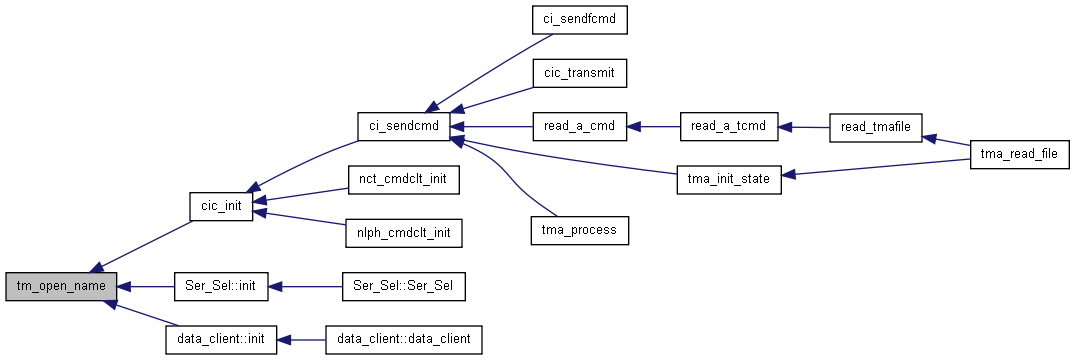

int	tm_open_name (const char name, const char node, int flags)
void	cic_options (int argc, char *argv, const char def_prefix)
int	cic_init (void)
void	cic_reset (void)
void	cic_transmit (char *buf, int n_chars, int transmit)
int	ci_sendcmd (const char *cmdtext, int mode)
int	ci_sendfcmd (int mode, const char *fmt,...)
void	ci_settime (long int time)
const char *	ci_time_str (void)
void	ci_server (void)
void	cis_initialize (void)
void	cis_terminate (void)
int	ci_cmdee_init (const char *name)
void	ci_report_version (void)
void	tma_new_state (unsigned int partition, const char *name)
void	tma_new_time (unsigned int partition, long int t1, const char *next_cmd)
void	tma_hold (int hold)
void	load_tmdac (const char *path)
Variables
tm_info_t	tm_info
int	TM_fd
char *	TM_buf
char	ci_version []
int	cic_cmd_quit_fd

Detailed Description

Defines basic telemetry formats.

Definition in file tm.h.

Define Documentation

#define __attribute__ ( x )

Definition at line 14 of file tm.h.

#define CMD_MAX_COMMAND_IN 300

Definition at line 250 of file tm.h.

#define TM_HDR_SIZE_T1 6

Definition at line 42 of file tm.h.

Referenced by process_tm_info().

#define TM_HDR_SIZE_T2 10

Definition at line 43 of file tm.h.

Referenced by process_tm_info().

#define TM_HDR_SIZE_T3 8

Definition at line 44 of file tm.h.

Referenced by process_tm_info().

#define tm_mfctr ( mf ) (mf[tmi(mfc_lsb)] + (mf[tmi(mfc_msb)]<<8))

Definition at line 225 of file tm.h.

#define TMBUFSIZE 16384

Definition at line 33 of file tm.h.

#define TMF_INVERTED 1

Definition at line 85 of file tm.h.

#define TMHDR_WORD 0x4D54

Definition at line 32 of file tm.h.

Referenced by do_write(), data_generator::init(), read_reply(), and data_generator::transmit_data().

#define tmi ( x ) tm_info.tm.x

Definition at line 224 of file tm.h.

Referenced by data_queue::init(), data_generator::init(), data_client::init_tm_type(), load_tmdac(), and process_tm_info().

#define TMTYPE_DATA_T1 0x0301

Definition at line 38 of file tm.h.

Referenced by do_write(), data_queue::init(), data_client::init_tm_type(), data_client::process_message(), process_tm_info(), and read_reply().

#define TMTYPE_DATA_T2 0x0302

Definition at line 39 of file tm.h.

Referenced by do_write(), data_queue::init(), data_client::init_tm_type(), data_client::process_message(), process_tm_info(), and read_reply().

#define TMTYPE_DATA_T3 0x0303

Definition at line 40 of file tm.h.

Referenced by do_write(), data_queue::init(), data_client::init_tm_type(), data_client::process_message(), process_tm_info(), and read_reply().

#define TMTYPE_DATA_T4 0x0304

Definition at line 41 of file tm.h.

Referenced by do_write(), and data_client::process_message().

#define TMTYPE_INIT 0x0100

Definition at line 36 of file tm.h.

Referenced by do_write(), data_generator::init(), data_client::process_message(), and read_reply().

#define TMTYPE_TSTAMP 0x0200

Definition at line 37 of file tm.h.

Referenced by do_write(), data_client::process_message(), read_reply(), and data_generator::transmit_data().

Typedef Documentation

typedef unsigned short mfc_t

Definition at line 25 of file tm.h.

typedef union tm_hdrs tm_hdrs_t

tm_hdrs_t is a combination of all the header types, defining the minimum size struct we need to read in to understand the rest of the message. The message layout is best understood in the tm_msg_t structure, but in actual practice, I will use tm_hdrs_t, then access the data directly.

typedef unsigned short tm_hdrw_t

Definition at line 26 of file tm.h.

typedef struct tm_msg tm_msg_t

tm_msg_t is the logical format of TM messages to and from TMbfr.

typedef unsigned long tmcks_t

Definition at line 27 of file tm.h.

Function Documentation

int ci_cmdee_init ( const char * name )

Definition at line 18 of file ci_cmdee.c.

References CMDEE_BUFSIZE, nl_assert, nl_error, nl_response, and tm_dev_name().

Here is the call graph for this function:

void ci_report_version ( void )

Definition at line 5 of file civ.c.

References ci_version.

int ci_sendcmd	(	const char *	cmdtext,
		int	mode
	)

Definition at line 146 of file cic.c.

References ci_time_str(), cic_header, cic_init(), cis_fd, CMD_MAX_COMMAND_IN, CMDREP_EXECERR, CMDREP_QUIT, CMDREP_SYNERR, nl_error, nl_response, playback, and sent_quit.

Referenced by ci_sendfcmd(), cic_transmit(), read_a_cmd(), tma_init_state(), and tma_process().

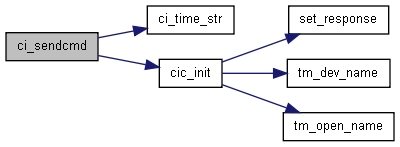

Here is the call graph for this function:

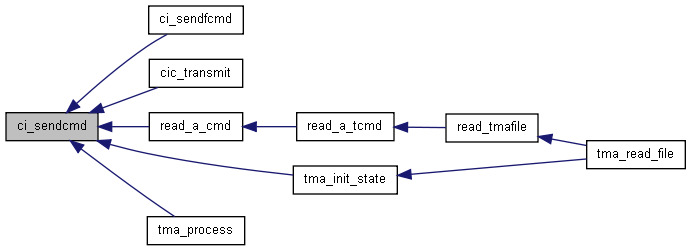

Here is the caller graph for this function:

int ci_sendfcmd	(	int	mode,
		const char *	fmt,
			...
	)

Definition at line 8 of file cicf.c.

References ci_sendcmd(), CMD_INTERP_MAX, and cmdbuf.

Here is the call graph for this function:

void ci_server ( void )

Definition at line 176 of file cis.c.

void ci_settime ( long int time )

Definition at line 115 of file cic.c.

References ci_time.

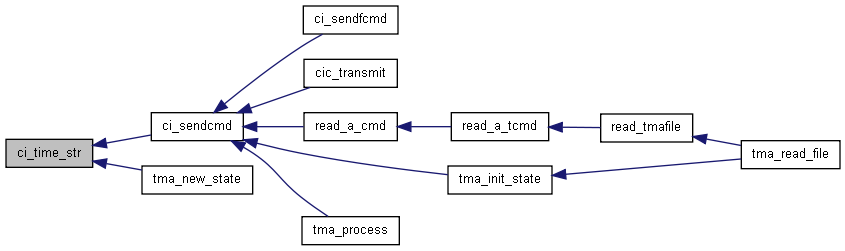

const char* ci_time_str ( void )

Definition at line 119 of file cic.c.

References ci_time, and playback.

Referenced by ci_sendcmd(), and tma_new_state().

Here is the caller graph for this function:

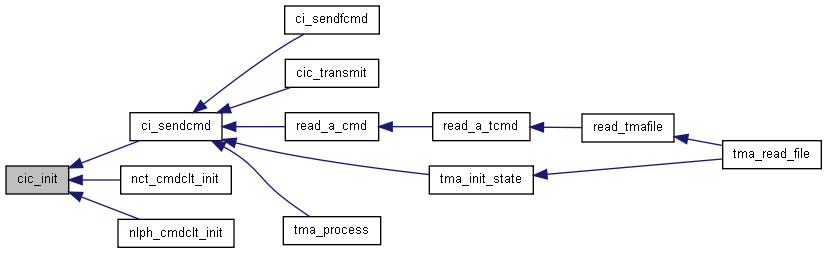

int cic_init ( void )

Definition at line 65 of file cic.c.

References ci_version, cic_cmd_quit_fd, cic_header, cis_fd, cis_node, CMD_VERSION_MAX, CMDSRVR_NAME, nl_error, nl_response, NLRSP_QUIET, NLRSP_WARN, playback, set_response(), tm_dev_name(), and tm_open_name().

Referenced by ci_sendcmd(), nct_cmdclt_init(), and nlph_cmdclt_init().

Here is the call graph for this function:

Here is the caller graph for this function:

void cic_options	(	int	argc,
		char **	argv,
		const char *	def_prefix
	)

Definition at line 30 of file cic.c.

References cic_header, cis_node, CMD_PREFIX_MAX, nl_error, opt_string, OPTIND_RESET, and playback.

void cic_reset ( void )

Definition at line 103 of file cic.c.

References cic_cmd_quit_fd, and cis_fd.

Referenced by cic_cmd_quit_func().

Here is the caller graph for this function:

void cic_transmit	(	char *	buf,
		int	n_chars,
		int	transmit
	)

Definition at line 40 of file cictrans.c.

References ci_sendcmd(), cmd_check(), CMD_INTERP_MAX, cmd_report(), cmdbuf, cur, curpos, nl_error, cmd_lev::pos, cmd_lev::prev, and cmd_lev::state.

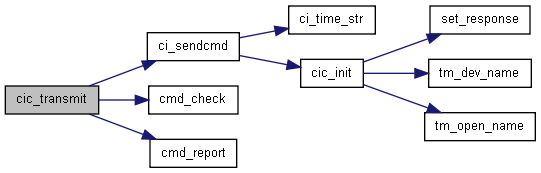

Here is the call graph for this function:

void cis_initialize ( void )

Definition at line 8 of file cis_stubs.c.

void cis_terminate ( void )

Definition at line 9 of file cis_stubs.c.

void load_tmdac ( const char * path )

Definition at line 17 of file tmdac.c.

References nl_error, tm_info_t::nrowminf, open_path(), tm_info_t::tm, tm_info, and tmi.

Here is the call graph for this function:

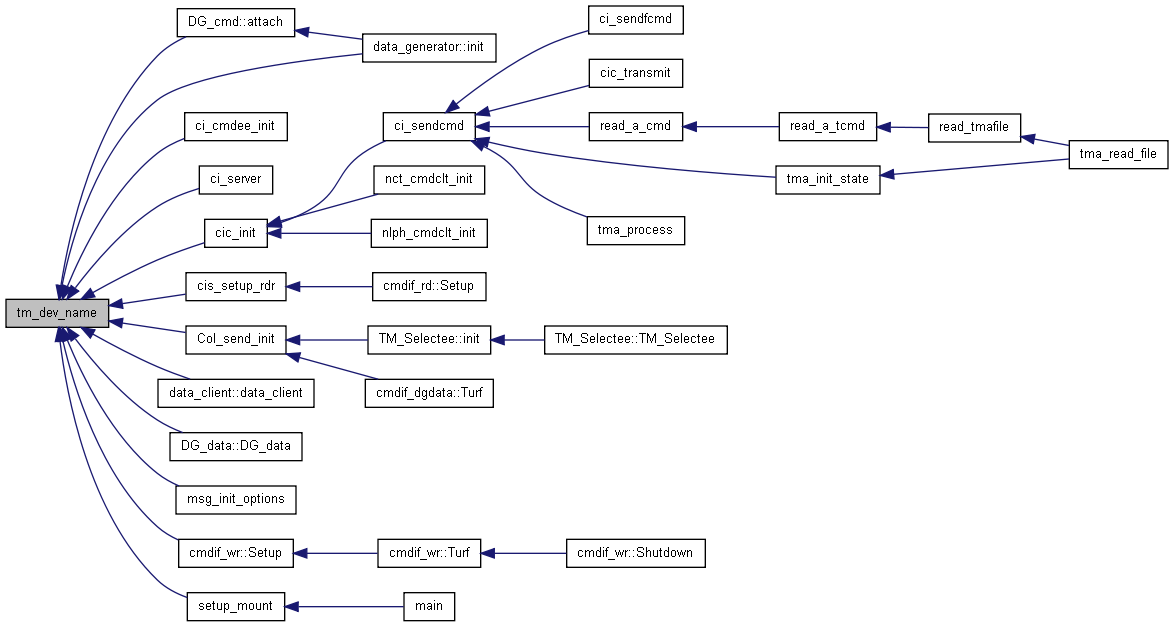

const char* tm_dev_name ( const char * base )

Build a standard name for QNX6 resource.

#include "tm.h" const char *tm_dev_name(const char *base);

If the input base string does not start with a '/', tm_dev_name() builds a string of the form: /dev/huarp/exp/base where exp is the current value of the environment variable "Experiment" and base is the input argument string. This is the standard means of building resource names within the ARP Data Acquisition System architecture.

Returns a pointer to a static buffer containing the expanded name. You must save the string if it is needed for long.
