ARPDAS_QNX6 1.0
|
Defines interface between QNX6 resource manager and subbus hardware. More...
Go to the source code of this file.
Classes | |
struct | carddef |
struct | region |
Defines | |
#define | MAX_REGIONS 4 |
Typedefs | |
typedef struct carddef | card_def |
Functions | |
void | incoming_sbreq (int rcvid, subbusd_req_t *req) |
void | init_subbus (dispatch_t *dpp) |
void | shutdown_subbus (void) |
int | expint_attach (int rcvid, char *cardID, unsigned short address, int region, struct sigevent *event, card_def **card) |
int | expint_detach (int rcvid, char *cardID, unsigned short *addr, unsigned int *bn) |
void | sb_cache_init (void) |
int | sb_cache_write (unsigned short addr, unsigned short data) |
int | sb_cache_read (unsigned short addr, unsigned short *data) |
Variables | |
card_def * | carddefs |
region | regions [MAX_REGIONS] |
char * | cache_hw_range |
char * | cache_sw_range |
Defines interface between QNX6 resource manager and subbus hardware.
A different hardware architecture can be supported by reimplementing these functions.
Definition in file subbusd_int.h.
#define MAX_REGIONS 4 |
Definition at line 28 of file subbusd_int.h.
Referenced by expint_attach(), and service_expint().
int expint_attach | ( | int | rcvid, |
char * | cardID, | ||
unsigned short | address, | ||
int | region, | ||
struct sigevent * | event, | ||
card_def ** | card | ||
) |
Definition at line 60 of file expint.c.
References region::address, carddef::address, carddef::bitno, region::bits, carddefs, carddef::cardID, CardID_MAX, region::def, carddef::event, find_card(), MAX_REGIONS, carddef::next, nl_error, carddef::owner, and carddef::reg_id.
Referenced by int_attach().

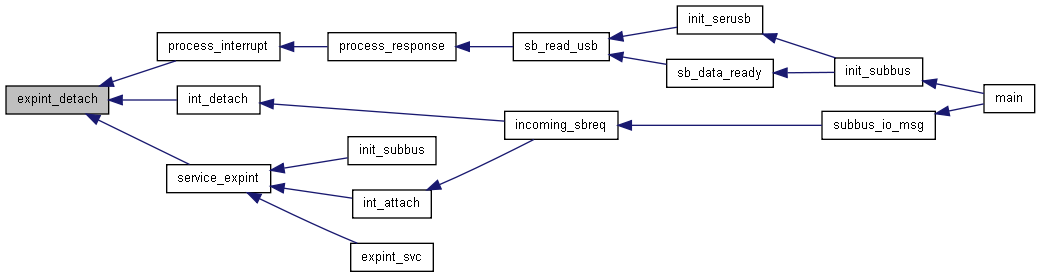

int expint_detach | ( | int | rcvid, |
char * | cardID, | ||
unsigned short * | addr, | ||
unsigned int * | bn | ||
) |
Definition at line 134 of file expint.c.
References delete_card(), find_card(), and nl_error.
Referenced by int_detach(), process_interrupt(), and service_expint().

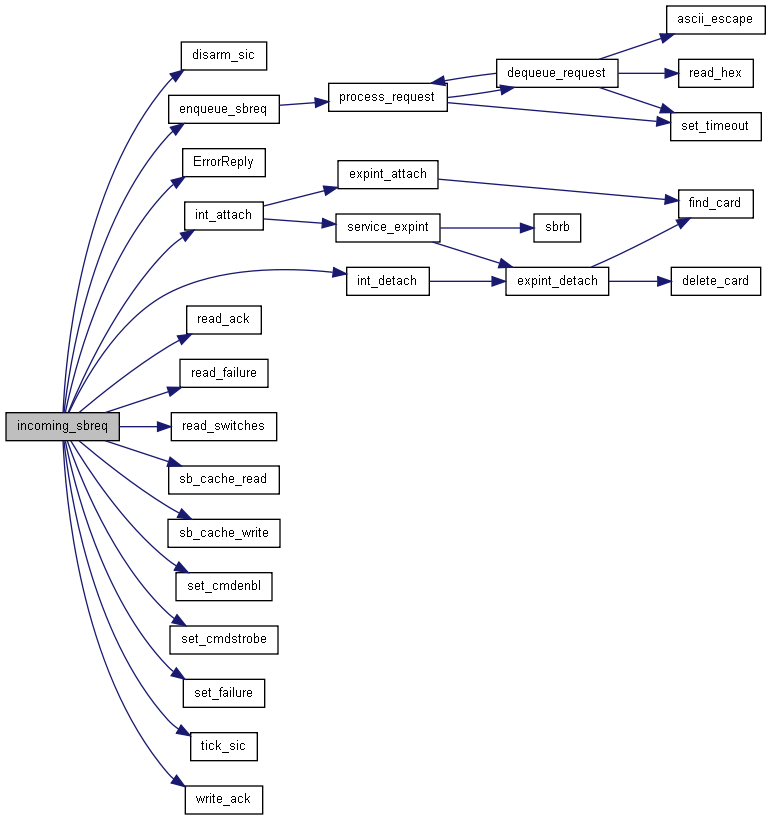

void incoming_sbreq | ( | int | rcvid, |
subbusd_req_t * | req | ||
) |
The basic sanity of the incoming message has been checked by subbus_io_msg before it gets here, so we can at least assume that the message was big enough to include the specified message type, and that the message type is defined.
This is where we serialize the request The basic sanity of the incoming message has been checked by subbus_io_msg before it gets here, so we can at least assume that the message was big enough to include the specified message type, and that the message type is defined.
Definition at line 137 of file sc104.c.
References subbusd_req_data0::address, subbusd_rep_t::capabilities, subbusd_req_hdr_t::command, subbusd_req_t::d0, subbusd_req_t::d1, subbusd_req_t::d4, subbusd_req_data0::data, subbusd_rep_t::data, subbusd_req_data1::data, subbusd_req_t::data, disarm_sic(), enqueue_sbreq(), ErrorReply(), subbusd_cap_t::features, subbusd_rep_t::hdr, int_attach(), int_detach(), LIBRARY_SUB, subbus_mread_req::multread_cmd, subbus_mread_req::n_reads, subbusd_cap_t::name, nl_error, read_ack(), read_failure(), read_switches(), subbusd_rep_hdr_t::ret_type, sb_cache_read(), sb_cache_write(), SB_SERUSB_MAX_REQUEST, SBC_DISARM, SBC_GETCAPS, SBC_INTATT, SBC_INTDET, SBC_MREAD, SBC_QUIT, SBC_READACK, SBC_READCACHE, SBC_READFAIL, SBC_READSW, SBC_SETCMDENBL, SBC_SETCMDSTRB, SBC_SETFAIL, SBC_TICK, SBC_WRITEACK, SBC_WRITECACHE, SBDR_TYPE_CLIENT, subbusd_req_t::sbhdr, SBRT_CAP, SBRT_NONE, SBRT_US, SBS_ACK, SBS_NOACK, SBS_OK, set_cmdenbl(), set_cmdstrobe(), set_failure(), subbusd_rep_hdr_t::status, SUBBUS_FEATURES, SUBBUS_NAME_MAX, subbusd_cap_t::subfunc, tick_sic(), subbusd_rep_t::value, and write_ack().
Referenced by subbus_io_msg().

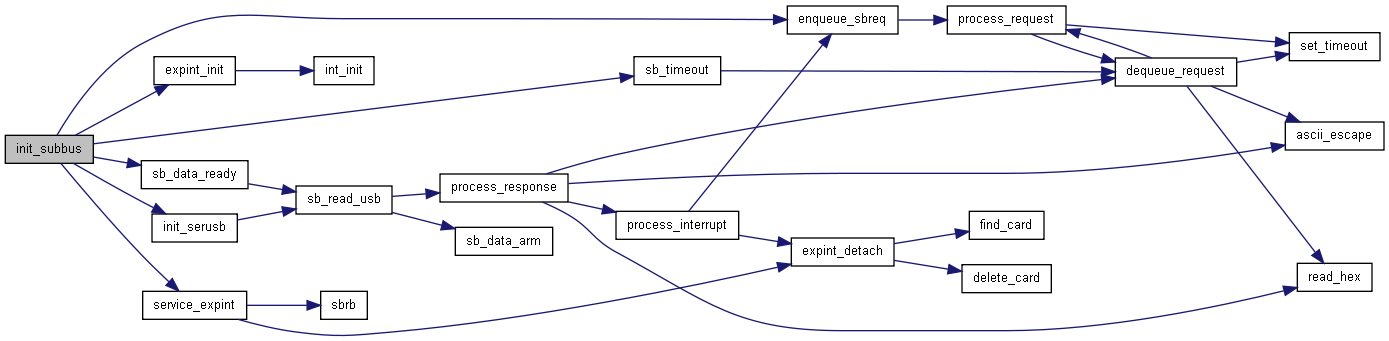

void init_subbus | ( | dispatch_t * | dpp | ) |
Definition at line 238 of file sc104.c.
References enqueue_sbreq(), expint_init(), init_serusb(), nl_error, sb_data_ready(), sb_timeout(), SBDR_TYPE_INTERNAL, SC_SB_CONFIG, SC_SB_HIGHCTRL, SC_SB_LOWCTRL, SC_SB_RESET, and service_expint().
Referenced by main().
void sb_cache_init | ( | void | ) |
Definition at line 101 of file cache.c.
References cache_hw_range, cache_sw_range, hw_max_addr, hw_min_addr, hwcache, new_memory(), nl_error, process_range(), sw_max_addr, sw_min_addr, and swcache.
Referenced by main().
int sb_cache_read | ( | unsigned short | addr, |
unsigned short * | data | ||
) |
Definition at line 51 of file cache.c.
References hw_max_addr, hw_min_addr, hwcache, nl_error, sw_max_addr, sw_min_addr, and swcache.
Referenced by incoming_sbreq().
int sb_cache_write | ( | unsigned short | addr, |
unsigned short | data | ||
) |
Definition at line 25 of file cache.c.
References hw_max_addr, hw_min_addr, hwcache, nl_error, sw_max_addr, sw_min_addr, and swcache.
Referenced by incoming_sbreq().
void shutdown_subbus | ( | void | ) |
Definition at line 260 of file sc104.c.
References n_compound_reads, n_part_reads, n_reads, n_writes, and nl_error.
Referenced by main().
char* cache_hw_range |
Definition at line 18 of file cache.c.
Referenced by sb_cache_init().
char * cache_sw_range |
Definition at line 18 of file cache.c.
Referenced by sb_cache_init().
Definition at line 28 of file expint.c.
Referenced by expint_attach(), and process_interrupt().
Definition at line 29 of file expint.c.
Referenced by service_expint().
