serusb.h File Reference

#include "subbusd_int.h"

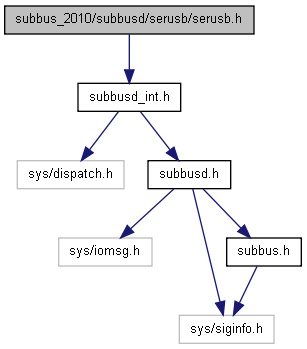

Include dependency graph for serusb.h:

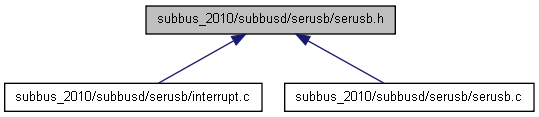

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sbd_request_t
Defines
#define	SB_SERUSB_MAX_REQUEST   256
#define	SBDR_TYPE_INTERNAL   0
#define	SBDR_TYPE_CLIENT   1
#define	SBDR_TYPE_MAX   1
#define	SBDR_STATUS_QUEUED   0
#define	SBDR_STATUS_SENT   1
#define	SUBBUSD_MAX_REQUESTS   20
Functions
int	int_attach (int rcvid, subbusd_req_t *req, char *sreq)
int	int_detach (int rcvid, subbusd_req_t *req, char *sreq)

---

Define Documentation

#define SB_SERUSB_MAX_REQUEST   256

SB_SERUSB_MAX_REQUEST is the maximum allowable string for a serialized command or response over the USB. The longest request will be for the multi-read command, and we may see fit to extend this size. The multi-read response may also be even longer, but we do not necessarily have to allocate buffer space for the entire response, since we can process it as it comes in.

Definition at line 15 of file serusb.h.

Referenced by enqueue_sbreq(), incoming_sbreq(), int_attach(), int_detach(), and sb_read_usb().

#define SBDR_STATUS_QUEUED   0

Definition at line 28 of file serusb.h.

Referenced by enqueue_sbreq(), and process_request().

#define SBDR_STATUS_SENT   1

Definition at line 29 of file serusb.h.

Referenced by process_request().

#define SBDR_TYPE_CLIENT   1

Definition at line 26 of file serusb.h.

Referenced by dequeue_request(), incoming_sbreq(), and process_request().

#define SBDR_TYPE_INTERNAL   0

Definition at line 25 of file serusb.h.

Referenced by dequeue_request(), init_subbus(), process_interrupt(), process_request(), and sb_timeout().

#define SBDR_TYPE_MAX   1

Definition at line 27 of file serusb.h.

#define SUBBUSD_MAX_REQUESTS   20

Definition at line 37 of file serusb.h.

Referenced by dequeue_request(), enqueue_sbreq(), and process_request().

---

Function Documentation

int int_attach	(	int	rcvid,
		subbusd_req_t *	req,
		char *	sreq
	)

Definition at line 7 of file interrupt.c.

References subbusd_req_data2::address, carddef::bitno, subbusd_req_data2::cardID, subbusd_req_t::d2, subbusd_req_t::data, subbusd_req_data2::event, expint_attach(), nl_error, subbusd_req_data2::region, and SB_SERUSB_MAX_REQUEST.

Here is the call graph for this function:

int int_detach	(	int	rcvid,
		subbusd_req_t *	req,
		char *	sreq
	)

Definition at line 23 of file interrupt.c.

References subbusd_req_data2::cardID, subbusd_req_t::d2, subbusd_req_t::data, expint_detach(), and SB_SERUSB_MAX_REQUEST.

Here is the call graph for this function:
