#include <errno.h>
#include <stdio.h>
#include <stddef.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <sys/iofunc.h>
#include <sys/dispatch.h>
#include <fcntl.h>
#include <ctype.h>
#include "serusb.h"
#include "nl_assert.h"

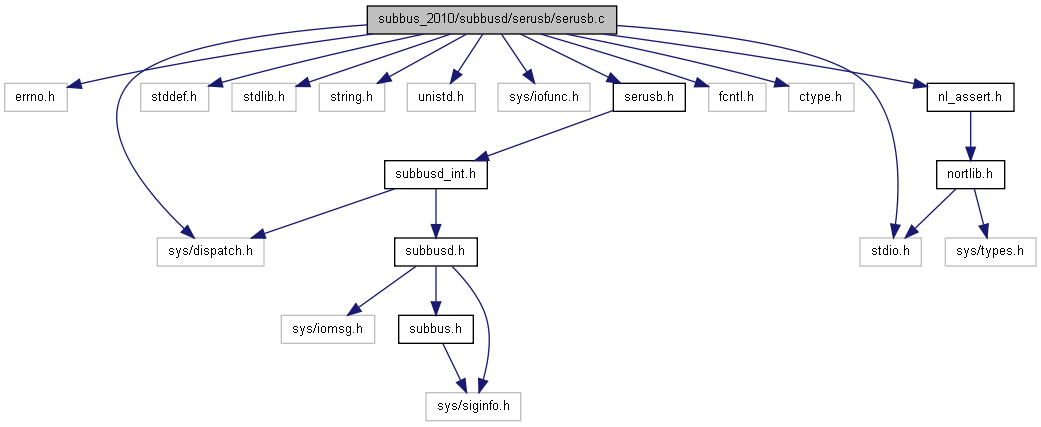

Include dependency graph for serusb.c:

Defines
#define	RESP_OK 0
#define	RESP_UNREC 1
#define	RESP_UNEXP 2
#define	RESP_INV 3
#define	RESP_INTR 4
#define	RESP_ERR 5
Functions
static void	dequeue_request (signed short status, int n_args, unsigned short arg0, unsigned short arg1, char *s)
static void	set_timeout (int enable)
static void	process_request (void)
static void	enqueue_sbreq (int type, int rcvid, char *req, unsigned short n_reads)
static int	sb_data_arm (void)
static int	read_hex (char *sp, unsigned short arg)
static void	process_interrupt (unsigned int nb)
static void	process_response (char *buf)
static void	sb_read_usb (void)
static int	sb_data_ready (message_context_t ctp, int code, unsigned flags, void handle)
static int	sb_timeout (message_context_t ctp, int code, unsigned flags, void handle)
static void	init_serusb (dispatch_t *dpp, int ionotify_pulse, int timeout_pulse)
static void	ErrorReply (int rcvid, int rv)
void	incoming_sbreq (int rcvid, subbusd_req_t *req)
void	init_subbus (dispatch_t *dpp)
void	shutdown_subbus (void)
Variables
static char	sb_ibuf [SB_SERUSB_MAX_REQUEST]
static int	sb_ibuf_idx = 0
static sbd_request_t	sbdrq [SUBBUSD_MAX_REQUESTS]
static sbd_request_t *	cur_req
static unsigned int	sbdrq_head = 0
static unsigned int	sbdrq_tail = 0
static int	sb_fd
static struct sigevent	ionotify_event
static timer_t	timeout_timer
static struct itimerspec timeout_enable	timeout_disable
static int	n_timeouts = 0
static int	n_writes = 0
static int	n_reads = 0
static int	n_part_reads = 0
static int	n_compound_reads = 0

Define Documentation

#define RESP_ERR 5

Definition at line 344 of file serusb.c.

Referenced by process_response().

#define RESP_INTR 4

Definition at line 343 of file serusb.c.

Referenced by process_response().

#define RESP_INV 3

Definition at line 342 of file serusb.c.

Referenced by process_response().

#define RESP_OK 0

Definition at line 339 of file serusb.c.

Referenced by process_response().

#define RESP_UNEXP 2

Definition at line 341 of file serusb.c.

Referenced by process_response().

#define RESP_UNREC 1

Definition at line 340 of file serusb.c.

Referenced by process_response().

Function Documentation

static void dequeue_request	(	signed short	status,
		int	n_args,
		unsigned short	arg0,
		unsigned short	arg1,
		char *	s
	)		`[static]`

Sends the response to the client (if any) and removes it from the queue. Initiates processing of the next command if one is waiting. Current assumption: n_args maps 1:1 onto SBRT_ codes n_args == 3 is only for 'V' request/response n_args == 4 is only for 'M' request/response We need to parse the 'M' response here rather than in process_response() because we need direct access to the reply structure.

Definition at line 177 of file serusb.c.

References ascii_escape(), subbusd_rep_t::capabilities, subbusd_rep_t::data, subbusd_cap_t::features, subbusd_rep_t::hdr, subbusd_rep_t::mread, subbusd_mread_t::n_reads, n_reads, sbd_request_t::n_reads, subbusd_cap_t::name, nl_assert, nl_error, process_request(), sbd_request_t::rcvid, read_hex(), sbd_request_t::request, subbusd_rep_hdr_t::ret_type, subbusd_mread_t::rvals, SBDR_TYPE_CLIENT, SBDR_TYPE_INTERNAL, sbdrq_head, SBRT_CAP, SBRT_MREAD, SBRT_NONE, SBRT_US, SBS_NOACK, SBS_RESP_ERROR, SBS_RESP_SYNTAX, set_timeout(), subbusd_rep_hdr_t::status, SUBBUS_NAME_MAX, SUBBUSD_MAX_REQUESTS, subbusd_cap_t::subfunc, sbd_request_t::type, and subbusd_rep_t::value.

Referenced by process_request(), process_response(), and sb_timeout().

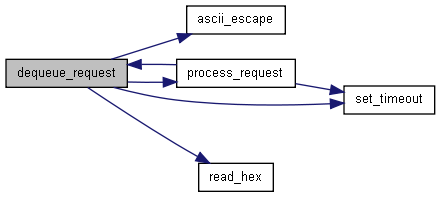

Here is the call graph for this function:

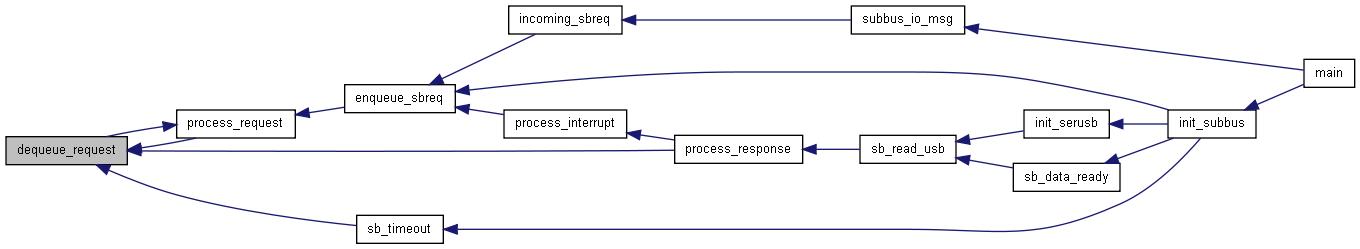

Here is the caller graph for this function:

static void enqueue_sbreq	(	int	type,
		int	rcvid,
		char *	req,
		unsigned short	n_reads
	)		`[static]`

This is where we serialize the request.

Definition at line 103 of file serusb.c.

References n_reads, sbd_request_t::n_reads, nl_error, process_request(), sbd_request_t::rcvid, sbd_request_t::request, SB_SERUSB_MAX_REQUEST, SBDR_STATUS_QUEUED, sbdrq_head, sbdrq_tail, sbd_request_t::status, SUBBUSD_MAX_REQUESTS, and sbd_request_t::type.

Referenced by incoming_sbreq(), init_subbus(), and process_interrupt().

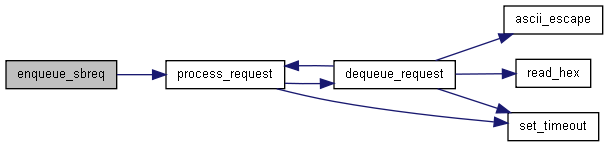

Here is the call graph for this function:

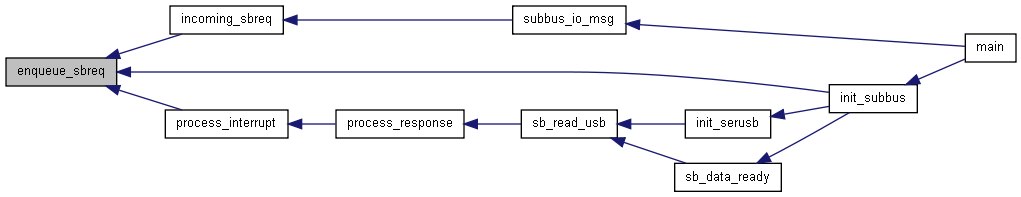

Here is the caller graph for this function:

static void ErrorReply	(	int	rcvid,
		int	rv
	)		`[static]`

Definition at line 631 of file serusb.c.

References nl_assert, subbusd_rep_hdr_t::ret_type, SBRT_NONE, and subbusd_rep_hdr_t::status.

Referenced by incoming_sbreq().

Here is the caller graph for this function:

void incoming_sbreq	(	int	rcvid,
		subbusd_req_t *	req
	)

This is where we serialize the request The basic sanity of the incoming message has been checked by subbus_io_msg before it gets here, so we can at least assume that the message was big enough to include the specified message type, and that the message type is defined.

Definition at line 647 of file serusb.c.

References subbusd_req_data0::address, subbusd_req_hdr_t::command, subbusd_req_t::d0, subbusd_req_t::d1, subbusd_req_t::d4, subbusd_req_data0::data, subbusd_rep_t::data, subbusd_req_data1::data, subbusd_req_t::data, enqueue_sbreq(), ErrorReply(), subbusd_rep_t::hdr, int_attach(), int_detach(), subbus_mread_req::multread_cmd, subbus_mread_req::n_reads, nl_error, subbusd_rep_hdr_t::ret_type, sb_cache_read(), sb_cache_write(), SB_SERUSB_MAX_REQUEST, SBC_DISARM, SBC_GETCAPS, SBC_INTATT, SBC_INTDET, SBC_MREAD, SBC_QUIT, SBC_READACK, SBC_READCACHE, SBC_READFAIL, SBC_READSW, SBC_SETCMDENBL, SBC_SETCMDSTRB, SBC_SETFAIL, SBC_TICK, SBC_WRITEACK, SBC_WRITECACHE, SBDR_TYPE_CLIENT, subbusd_req_t::sbhdr, SBRT_NONE, SBRT_US, SBS_ACK, SBS_NOACK, SBS_OK, subbusd_rep_hdr_t::status, and subbusd_rep_t::value.

Referenced by subbus_io_msg().

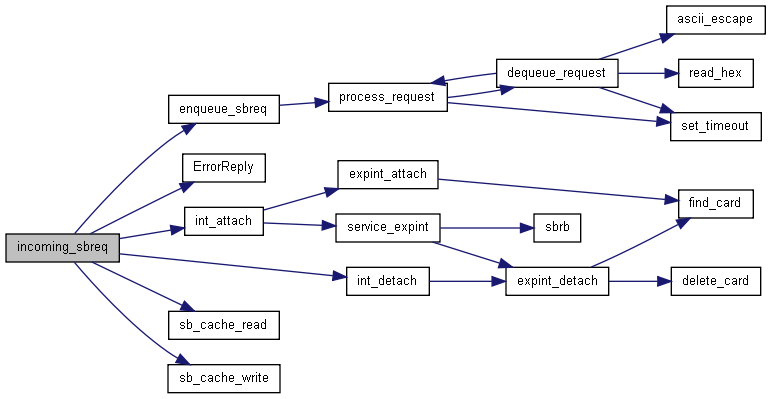

Here is the call graph for this function:

Here is the caller graph for this function:

static void init_serusb	(	dispatch_t *	dpp,
		int	ionotify_pulse,
		int	timeout_pulse
	)		`[static]`

Definition at line 576 of file serusb.c.

References ionotify_event, nl_error, sb_fd, sb_read_usb(), timeout_disable, and timeout_timer.

Referenced by init_subbus().

Here is the call graph for this function:

Here is the caller graph for this function:

void init_subbus ( dispatch_t * dpp )

Definition at line 732 of file serusb.c.

References enqueue_sbreq(), init_serusb(), sb_data_ready(), sb_timeout(), and SBDR_TYPE_INTERNAL.

Referenced by main().

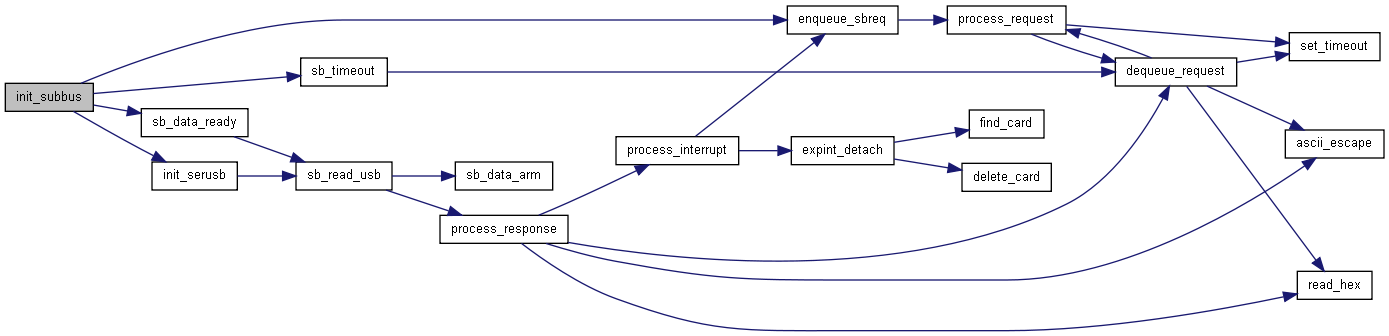

Here is the call graph for this function:

Here is the caller graph for this function:

static void process_interrupt ( unsigned int nb ) [static]

Definition at line 304 of file serusb.c.

References carddef::bitno, carddefs, carddef::cardID, enqueue_sbreq(), carddef::event, expint_detach(), carddef::next, nl_assert, nl_error, carddef::owner, and SBDR_TYPE_INTERNAL.

Referenced by process_response().

Here is the call graph for this function:

Here is the caller graph for this function:

static void process_request ( void ) [static]

Definition at line 44 of file serusb.c.

References dequeue_request(), n_writes, nl_assert, nl_error, sbd_request_t::request, sb_fd, SBDR_STATUS_QUEUED, SBDR_STATUS_SENT, SBDR_TYPE_CLIENT, SBDR_TYPE_INTERNAL, sbdrq_head, sbdrq_tail, SBS_OK, set_timeout(), sbd_request_t::status, SUBBUSD_MAX_REQUESTS, and sbd_request_t::type.

Referenced by dequeue_request(), and enqueue_sbreq().

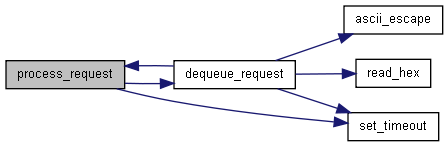

Here is the call graph for this function:

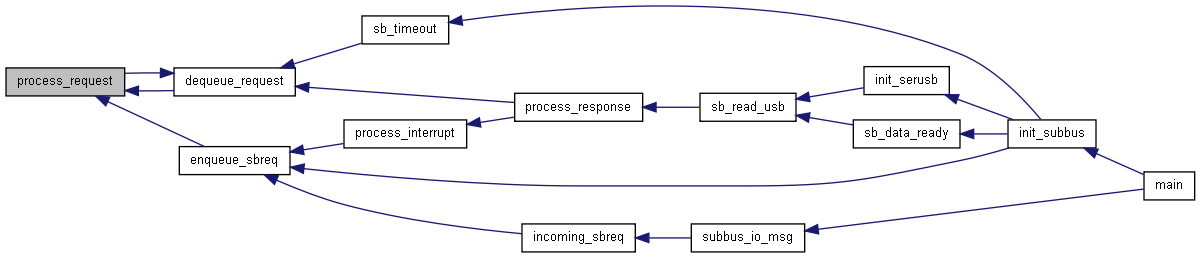

Here is the caller graph for this function:

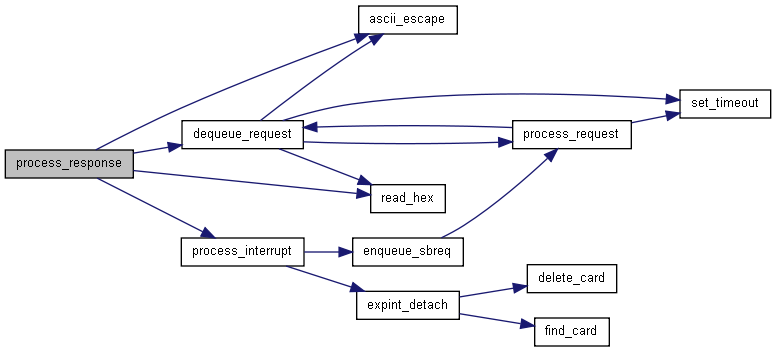

static void process_response ( char * buf ) [static]

process_response() reviews the response in the buffer to determine if it is a suitable response to the current request. If so, it is returned to the requester. process_response() is not responsible for advancing to the next request, but it is responsible for dequeuing the current request if it has been completed.

The string in resp is guaranteed to have had a newline at the end, which was replaced with a NUL, so we are guaranteed to have a NUL- terminated string.

Definition at line 360 of file serusb.c.

References ascii_escape(), dequeue_request(), nl_error, process_interrupt(), read_hex(), sbd_request_t::request, RESP_ERR, RESP_INTR, RESP_INV, RESP_OK, RESP_UNEXP, RESP_UNREC, SBS_ACK, SBS_NOACK, and SBS_OK.
