#include <SerSelector.h>

Inheritance diagram for Ser_Sel:

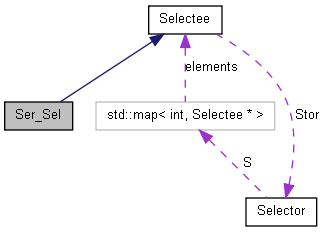

Collaboration diagram for Ser_Sel:

Public Member Functions
	Ser_Sel (const char *path, int open_flags, int bufsz)
	Ser_Sel ()
	~Ser_Sel ()
void	init (const char *path, int open_flags, int bufsz)
void	setup (int baud, int bits, char par, int stopbits, int min, int time)
Protected Member Functions
int	fillbuf ()
void	consume (int nchars)
void	flush_input ()
void	report_err (const char *msg,...)
void	report_ok ()
int	not_found (unsigned char c)
int	not_hex (unsigned short &hexval)
int	not_int (int &val)
int	not_str (const char *str, unsigned int len)
int	not_str (const std::string &s)
int	not_str (const char *str)
int	not_float (float &val)
Protected Attributes
unsigned int	nc
unsigned int	cp
unsigned char *	buf
int	bufsize
int	n_fills
int	n_empties
int	n_eagain
int	n_eintr
Private Member Functions
void	sersel_init ()
Private Attributes
int	n_errors
int	n_suppressed
int	total_errors
int	total_suppressed

Detailed Description

A Selectee for monitoring a serial line.

Definition at line 40 of file SerSelector.h.

Constructor & Destructor Documentation

Ser_Sel::Ser_Sel	(	const char *	path,
		int	open_flags,
		int	bufsz
	)

Parameters:

path	The full path to the serial device. If path == NULL, the fd will not be opened.
open_flags	Flags from <fcntl.h> passed to open()
bufsz	The size buffer to be allocated.

Definition at line 67 of file SerSelector.cc.

References init(), and sersel_init().

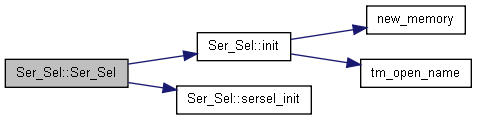

Here is the call graph for this function:

Ser_Sel::Ser_Sel ( )

Definition at line 73 of file SerSelector.cc.

References sersel_init().

Here is the call graph for this function:

Ser_Sel::~Ser_Sel ( )

Frees the allocated buffer and reports statistics.

Definition at line 117 of file SerSelector.cc.

References buf, free_memory, n_eagain, n_eintr, n_empties, n_fills, nl_error, total_errors, and total_suppressed.

Member Function Documentation

void Ser_Sel::consume ( int nchars ) [protected]

Each call to consume() increments the n_empties counter which is reported at termination. If n_fills is much greater than n_empties, you may need to adjust your min and time settings for more efficient operation.

Parameters:

nchars number of characters to remove from front of buffer

Definition at line 218 of file SerSelector.cc.

References buf, cp, n_empties, and nc.

int Ser_Sel::fillbuf ( ) [protected]

Reads characters from the device, reporting any errors. Guarantees that buf is NUL-terminated, and sets nc to the total number of characters. Each call to fillbuf() increments the n_fills counter, which is reported at termination

Returns:: non-zero on error.

Definition at line 190 of file SerSelector.cc.

References buf, bufsize, Selectee::fd, n_eagain, n_eintr, n_fills, nc, and nl_error.

Referenced by flush_input().

Here is the caller graph for this function:

void Ser_Sel::flush_input ( ) [protected]

Invokes fillbuf() until there is no input remaining.

Definition at line 235 of file SerSelector.cc.

References cp, fillbuf(), and nc.

Here is the call graph for this function:

void Ser_Sel::init	(	const char *	path,
		int	open_flags,
		int	bufsz
	)

Parameters:

path	The full path to the serial device. If path == NULL, the fd will not be opened.
open_flags	Flags from <fcntl.h> passed to open()
bufsz	The size buffer to be allocated.

Definition at line 83 of file SerSelector.cc.

References buf, bufsize, Selectee::fd, Selectee::flags, new_memory(), Selector::Sel_Read, and tm_open_name().

Referenced by Ser_Sel().

Here is the call graph for this function:

Here is the caller graph for this function:

int Ser_Sel::not_float ( float & val ) [protected]

Parsing utility function to convert a string in the input buffer to a float value. Updates cp to point just after the converted string on success.

Parameters:

val[out] The converted value

Returns:: zero if the conversion succeeded.

Definition at line 401 of file SerSelector.cc.

References buf, bufsize, cp, msg(), nc, nl_assert, and report_err().

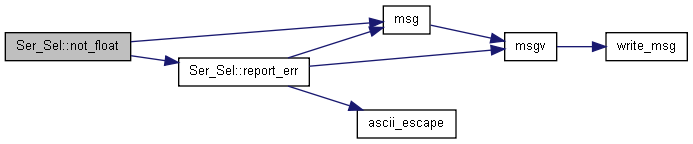

Here is the call graph for this function:

int Ser_Sel::not_found ( unsigned char c ) [protected]

Parsing utility function that searches forward in the buffer for the specified start character. Updates cp to point just past the start char. If the character is not found, the buffer is emptied.

Parameters:

c	The search character

Returns:: zero if the character is found.

Definition at line 289 of file SerSelector.cc.

References buf, cp, nc, and report_err().

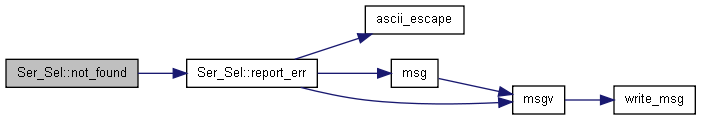

Here is the call graph for this function:

int Ser_Sel::not_hex ( unsigned short & hexval ) [protected]

Parsing utility function to read in a hex integer starting at the current position. Integer may be proceeded by optional whitespace.

Parameters:

[out] hexval The integer value

Returns:: zero if an integer was converted, non-zero if the current char is not a digit.

Definition at line 308 of file SerSelector.cc.

References buf, cp, nc, and report_err().

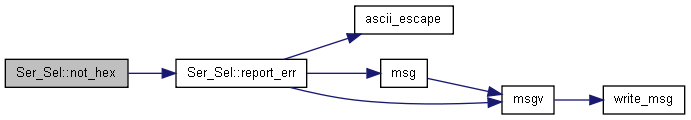

Here is the call graph for this function:

int Ser_Sel::not_int ( int & val ) [protected]

Parsing utility function to read in a decimal integer starting at the current position. Integer may be proceeded by optional whitespace and an optional sign.

Parameters:

[out] val The integer value

Returns:: zero if an integer was converted, non-zero if the current char is not a digit.

Definition at line 332 of file SerSelector.cc.

References buf, cp, nc, and report_err().

Here is the call graph for this function:

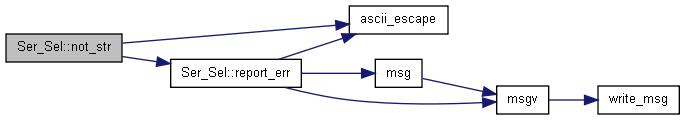

int Ser_Sel::not_str	(	const char *	str_in,
		unsigned int	len
	)		`[protected]`

Parsing utility function to check that the string matches the input at the current position. On success, advances cp to just after the matched string. On failure, cp points to the first character that does not match. If only a partial record was received, that could be the NUL at the end of the buffer.

Parameters:

str	The comparison string.

Returns:: zero if the string matches the input buffer.

Definition at line 365 of file SerSelector.cc.

References ascii_escape(), buf, cp, nc, nl_error, and report_err().

Referenced by not_str().

Here is the call graph for this function:

Here is the caller graph for this function:

int Ser_Sel::not_str ( const char * str ) [protected]

Definition at line 385 of file SerSelector.cc.

References not_str().

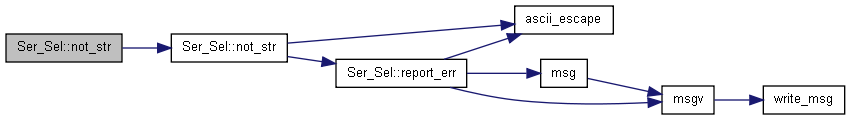

Here is the call graph for this function:

int Ser_Sel::not_str ( const std::string & s ) [protected]

Definition at line 389 of file SerSelector.cc.

References not_str().

Here is the call graph for this function:

void Ser_Sel::report_err	(	const char *	fmt,
			...
	)		`[protected]`

Reports the error message, provided the qualified error count is not above the limit. report_ok() will decrement the qualified error count. It is assumed that all messages are of severity MSG_ERR. Messages at other levels, either more or less severe, should be sent directly to msg().

Definition at line 250 of file SerSelector.cc.

References ascii_escape(), buf, msg(), msgv(), n_errors, n_suppressed, nc, QERR_THRESHOLD, total_errors, and total_suppressed.

Referenced by not_float(), not_found(), not_hex(), not_int(), and not_str().

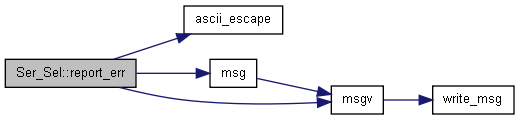

Here is the call graph for this function:

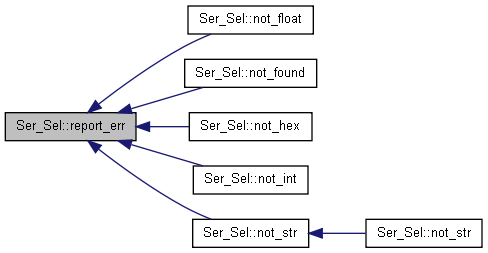

Here is the caller graph for this function:

void Ser_Sel::report_ok ( ) [protected]

Indicate that data has successfully been received.

Definition at line 273 of file SerSelector.cc.

References msg(), n_errors, and n_suppressed.

Here is the call graph for this function:

void Ser_Sel::sersel_init ( ) [private]

Definition at line 101 of file SerSelector.cc.

References buf, bufsize, cp, Selectee::fd, n_eagain, n_eintr, n_empties, n_errors, n_fills, n_suppressed, nc, total_errors, and total_suppressed.

Referenced by Ser_Sel().

Here is the caller graph for this function:

void Ser_Sel::setup	(	int	baud,
		int	bits,
		char	par,
		int	stopbits,
		int	min,
		int	time
	)

Initializes the serial parameters for the device. The min and time parameters can be used to optimize reads. See tcsetattr VMIN and VTIME parameters for more information.

Parameters:

baud	The desired baud rate
bits	number of data bits (5-8)
par	'n', 'e', 'o', 'm', 's' for none, even, odd, mark or space.
stopbits	The number of stop bits: 1 or 2
min	The minimum number of characters to respond to
time	The time gap value
